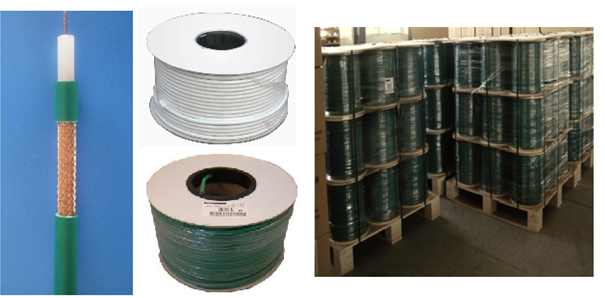

Name:KX6 19VATC
Model:KX6 19VATC
Despcriptions:


Physical Dimensions

Component

Material

KX6

KX8

Center Conductor

Strand Bare Copper

7X0.2 mm

7X0.4 mm

Dielectri

Gas Foam/Solide PE

3.70 mm

7.25 mm

Braid

Bare Copper Wire

92%/112/0.12 mm

90%/144/0.12 mm

Jacket

PVC

6.15 mm

10.30 mm


Mechanical Characteristics



KX6

KX8

Operating Temperature Range

-20 ℃ To +70 ℃

-30 ℃ To +75 ℃

Max.Recommended Pulling Tension

68 1bs

180 1bs

Min.Bend Radius (Install)

2.5 in

5 in


Electrical Characteristics

Sparker Test

2500 VAC

Impedance

75±3 Ohm

Capacitance

67± 3 pF/m

Velocity of Propagation

66%

SRL

25dB (5-470MHz)
20dB (470-1000MHz)


KX6 Attenuation

Attenuation

@68°F.(20 ℃ )

Frequency(MHz)

Max.(dB/100 m)

Frequency(MHz)

Max.(dB/100 m)

5

.59

150

14.53

50

8.13

200

16.92

100

11.73

1000

40.02


KX8 Attenuation

Attenuation

@68°F.(20 ℃ )

Frequency(MHz)

Max.(dB/100 m)

Frequency(MHz)

Max.(dB/100 m)

100

5.0

500

18.0

50

8.13

200

16.92

100

11.73

1000

40.02


CE, ROHS, IS09001:2001
